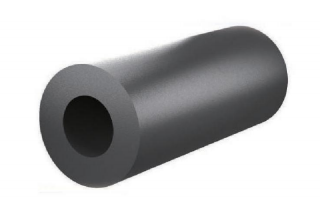

Deflector de goma cilíndrico
Características del producto:
Especificaciones
|
Especificaciones |
Tamaño |
|||
|
D(mm) |
D (mm) |
Max, Longitud (mm) |
Approx, peso (kg/m) |
|
|
CY150xL |
150 |
75 |
10000 |
15 |
|
CY200xL |
200 |
100 |
10000 |
28 |
|
CY250xL |
250 |
125 |
10000 |
45 |
|
CY300xL |
300 |
150 |
10000 |
64 |
|
CY400xL |
400 |
200 |
8000 |
110 |
|
CY500xL |
500 |
250 |
8000 |
175 |
|
CY600xL |
600 |
300 |
3000 |
250 |
|
CY700xL |
700 |
350 |
3000 |
345 |
|
CY800xL |
800 |
400 |
3000 |
450 |
|
CY900xL |
900 |
450 |
3000 |
570 |
|
CY1000xL |
1000 |
500 |
3000 |
710 |
|
CY1200xL |
1200 |
600 |
3000 |
1020 |
|
CY1400xL |
1400 |
700 |
3000 |
1400 |
|
CY1600xL |
1600 |
800 |
3000 |
1800 |
Parámetros de rendimiento
|
Especificaciones (mm) |
Deformación por compresión 50% |
Deformación por compresión 40% |
||||||
|
Rendimiento |
Rendimiento |
|||||||
|
Tipo de reacción estándar |
Tipo de alta resistencia |
Tipo de reacción estándar |
Tipo de alta resistencia |
|||||
|
R(KN) |
E(KN,M) |
R(KN) |
E(KN,M) |
R(KN) |
E(KN,M) |
R(KN) |
E(KN,M) |
|
|
CY150x 1000 |
45 |
1,5 |
73 |
2,3 |
30 |
0,9 |
50 |
1,4 |
|
CY200x1000 |
61 |
2,7 |
97 |
4,3 |
41 |
1,7 |
65 |
2,6 |
|
CY250 x 1000 |
76 |
4,2 |
122 |
6,6 |
52 |
2,6 |
82 |
4,0 |
|
CY300x1000 |
91 |
6,0 |
146 |
9,7 |
62 |
3,6 |
98 |
5,9 |
|
CY400x 1000 |
121 |
10,6 |
195 |
17,2 |
83 |
6,5 |
131 |
10,4 |
|
CY500x1000 |
151 |
16,4 |
244 |
27,0 |
103 |
10,1 |
164 |
16,5 |
|
CY600x 1000 |
182 |
24 |
292 |
38 |
124 |
15 |
196 |
23 |
|
CY700x 1000 |
212 |
32 |
341 |
53 |
145 |
20 |
229 |
31 |
|
CY800x 1000 |
242 |
42 |
390 |
69 |
165 |
26 |
262 |
41 |
|
CY900x 1000 |
273 |
53 |
439 |
87 |
186 |
32 |
295 |
53 |
|
CY1000x1000 |
303 |
65 |
488 |
108 |
206 |
40 |
328 |
64 |
|
CY1200x 1000 |
370 |
95 |
588 |
158 |
252 |
61 |
393 |
92 |
|
CY1400 x 1000 |
430 |
130 |
683 |
216 |
292 |
80 |
459 |
126 |
|
CY1600 x 1000 |
490 |
173 |
781 |
276 |
334 |
107 |
525 |
164 |
